PPR Plstic Union

PPR Plstic Union

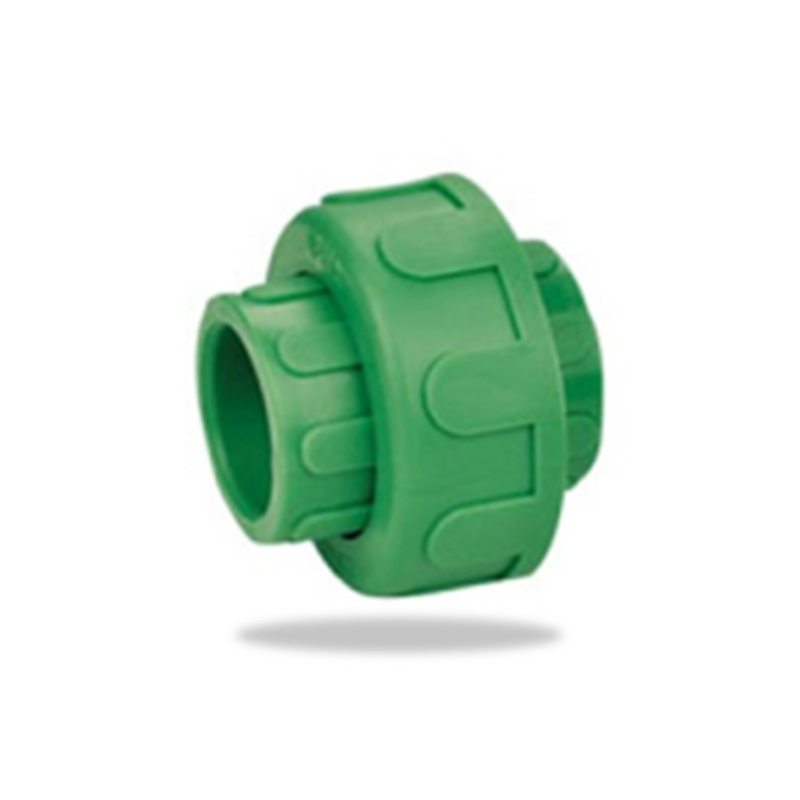

PPR Plastic Union is designed with a union connection and made to join two PPR pipes together and make the piping system disassemble and reassembly simple, two union nuts plus a center piece make up the three components of the PPR plastic union,each union nut has a threaded end that attaches to the central piece and a socket end that may be used to insert a PPR pipe. By removing the union nuts, the center piece, which has a smooth bore that permits fluid to flow freely,It can be used in the inconvenient fixed connection position at both ends. It can be disassembled at any time when the position needs to be changed from time to time.

send inquiry

PREV：PPR Female Threaded Union NEXT：No next article

SPECIFICATION CUSTOMIZED SERVICE

Item Name	PPR plastic Union
Size	20-63mm
Pressure	Pn 2.5Mpa
Material	Polypropylene random, PPR beta
Color	Green, gray, white, purple
Connection	Hot melting
Standard	DIN8077, DIN8078 ,ISO16962

Item name	Product Code	Size (mm)	Packing (pc/ctn)	Vol per Ctn (cbm)	Weight (kg/pc)
Plastic Union	RU20	20	560	0.0525	0.023
	RU25	25	300	0.0525	0.046
	RU32	32	200	0.0525	0.065
	RU40	40	72	0.0525	0.147
	RU50	50	40	0.0525	0.245
	RU63	63	40	0.0525	0.423

About Us

Shanghai Zhongsu Pipe Co., Ltd.

Shanghai Zhongsu Pipe Co.,Ltd established in 2004 with 1.01 billion registration capital, situated in Jinshan district of shanghai china, occupied 70000 square meters. ZHSU specialized in producing PPR pipe, antibacterial PPR pipe, anti UV PPR pipe, PP-RCT pipe, PE-RT pipe, HDPE pipe and fittings with various materials, adopted high technology production line to improve productivity and provide customer with fast delivery time. OEM PPR Plstic Union Manufacturers and Wholesale PPR Plstic Union Factory in China. In order to cooperate with national rural drinking water safety project, ZHSU adopted large diameter facility for PE production, our biggest PE pipe diameter reached DN1200mm at present, ZHSU has become one of the manufacturers in china who can produce such large diameter PE pipe.

We adopted German brand Battenfeld-cincinnati production lines for plastic pipes to organize production in strictly accordance with international standards, the procedure from raw material purchasing to finished product delivery is fully under monitoring, passed ISO9001, ISO14001 and OHSAS18001 certification because of perfect management. Wholesale PPR Plstic Union. Besides we were nominated as ”Shanghai famous brand products, Shanghai high-tech enterprises and Shanghai famous trademarks”.

Certificate Of Honor

Message Feedback

News

Can the PPR Tee be used in both new construction and existing plumbing systems?
10 May, 2024
In the intricate dance of plumbing systems, finding components that seamlessly i...
READ MORE
How does the flexibility of HDPE pipes impact their installation process compared to rigid pipes?
29 Apr, 2024
When need to choosing pipes for various applications, one of the critical factor...
READ MORE
How do PPR fittings maintain their structural integrity and performance at higher temperatures?
23 Apr, 2024
Polypropylene random copolymer (PPR) fittings have gained significant popularity...
READ MORE
How does the cost of PPR antibacterial pipes compare to other plumbing materials
15 Apr, 2024
PPR (Polypropylene Random Copolymer) pipes have long been favored in plumbing sy...
READ MORE
Can the PPR antimicrobial properties of the pipe be negatively affected by exposure to certain chemicals or environmental conditions?
12 Apr, 2024
PPR (Polypropylene Random Copolymer) antimicrobial pipes have emerged as a cutti...
READ MORE

Product Knowledge

Are there any additives or enhancers in the PPR Stop Valve material to enhance its performance?

The specific composition of PPR Stop Valve materials can vary among , and formulations are often proprietary. However, certain additives or enhancers may be incorporated to improve the performance of PPR Stop Valves. Here are some common additives or enhancements that may be found in PPR materials:

Glass Fiber Reinforcements:

Glass fibers can be added to the PPR material to enhance its mechanical strength, rigidity, and resistance to pressure. Glass fiber reinforcement can contribute to the overall durability of the valve.

Mineral Reinforcements:

Minerals, such as talc or calcium carbonate, may be used as reinforcements to improve the stiffness and dimensional stability of the PPR material. This can enhance the valve's performance under different operating conditions.

Stabilizers:

Stabilizers are additives that help protect the PPR material from degradation caused by exposure to heat, light, or oxidative environments. Stabilizers contribute to the long-term stability of the valve.

Antioxidants:

Antioxidants are additives that inhibit the degradation of the PPR material due to oxidation. They help maintain the material's properties over time, especially in applications where the valve is exposed to environmental factors.

UV Stabilizers:

UV stabilizers are added to PPR materials to protect against the harmful effects of ultraviolet (UV) radiation from sunlight. This is particularly relevant for outdoor applications where the valve may be exposed to sunlight.

Impact Modifiers:

Impact modifiers are incorporated to improve the toughness and impact resistance of the PPR material. This is especially important in applications where the valve may be subjected to mechanical stress or impact.

Colorants and Pigments:

Colorants or pigments may be added to the PPR material for aesthetic purposes or to differentiate valves of different specifications. These additives do not typically impact the performance but may influence the appearance of the valve.

Processing Aids:

Processing aids can be used during the manufacturing process to improve the melt flow and processing characteristics of the PPR material. This aids in the fabrication of complex shapes, such as valve components.

Flame Retardants:

In some cases, flame retardants may be included to enhance the fire resistance of the PPR material. This is important in applications where fire safety is a consideration.

The inclusion of additives is carefully considered in the formulation to meet specific performance requirements and industry standards.
