HDPE PIPE for Nuclear Plant

ZHSU has the high density polyethylene (HDPE) pipe for nuclear power plant piping system, it is cost-competitive and corrosion resistance,which makes HDPE pipe the best choice for nuclear, natural gas and coal-fired power plants etc.

Share This Product:
  • SPECIFICATION
  • APPLICATION
  • FACTORY

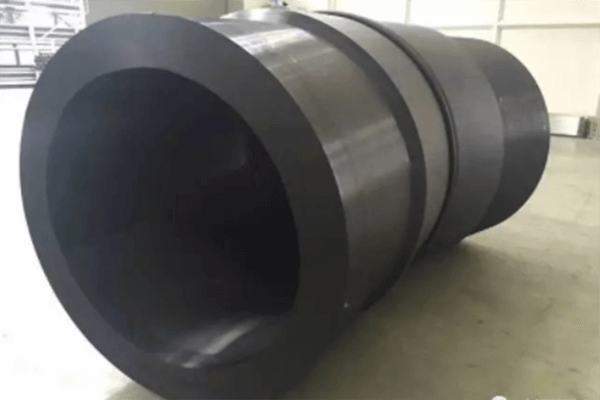

High density polyethylene (HDPE) pipe for nuclear power plant piping system is gaining in popularity because of its favorable purchase and installation costs, it is cost-competitive and corrosion resistance,which makes HDPE pipe the best choice for nuclear, natural gas and coal-fired power plants etc., manufactured from superior PE 4710 resin material for greater performance and an extended life expectancy, 100% virgin material, non-toxic.

SPECIFICATIONS
Material : High density polyethylen PE4710
Size : 3’’ ~ 48’’
Certification : ISO9001,CE,SGS,CNAS
Pressure : PN2.5/SDR7.3 ~ PN1.6/SDR11
Standard : ASTM F714-2012
Length : 6 meter / pcs, 5.8 meter/pcs, 11.8 meter/pcs
Joint : but-fused joints

Size (inch)

Size (mm)

PN2.5 (SDR7.3)

PN2.0 (SDR 9)

PN1.6 (SDR 11)

Thickness (mm)

Weight (kg/meter)

Thickness (mm)

Weight (kg/meter)

Thickness (mm)

Weight (kg/meter)

88.9

3"

12.18

2.97

9.88

2.48

8.08

2.09

114.3

4"

15.66

4.89

12.70

4.10

10.39

3.44

141.3

5"

19.36

7.49

15.70

6.26

12.85

5.24

168.3

6"

23.05

10.60

18.70

8.87

15.30

7.44

219.1

8"

30.01

17.96

24.34

15.03

19.92

12.58

273.1

10"

37.40

27.87

30.34

23.33

24.82

19.54

323.8

12"

44.36

39.19

35.98

32.78

29.44

27.49

355.6

14"

48.71

47.24

39.51

39.54

32.33

33.15

406.4

16"

55.67

61.69

45.16

51.66

36.95

43.25

457.2

18"

62.63

78.07

50.80

65.33

41.56

54.76

508

20"

69.59


56.44


46.18


558.8

22"

76.55


62.09


50.80


609.6

24"

83.51


67.73


55.42


660.4

26"

90.47


73.38


60.04


711.2

28"

97.42


79.02


64.65


762

30"

104.38


84.67


69.27


812.8

32"

111.34


90.31


73.89


863.6

34"

118.30


95.96


78.51


914.4

36"

\


101.60


83.13


1066.8

42"

\


118.53


96.98


1219.2

48"

\




110.84


( Nuclear piping data sheet )

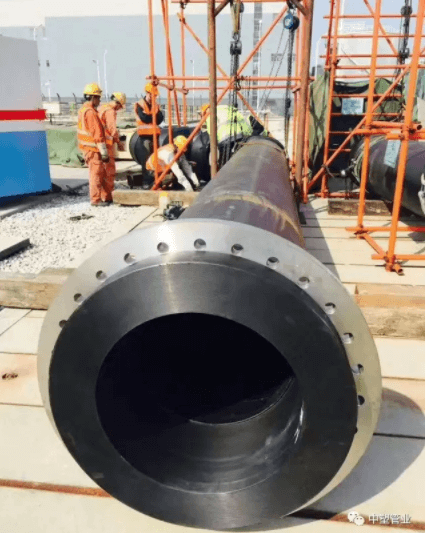

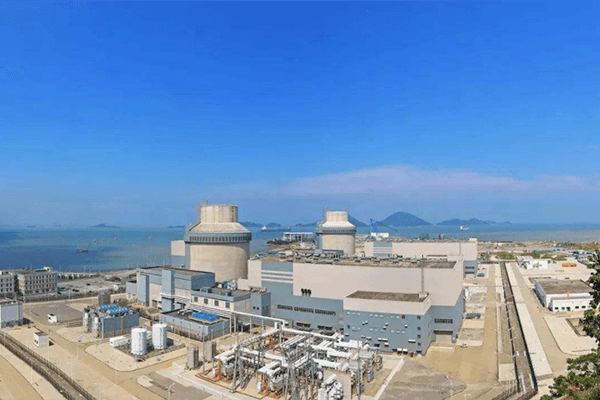

HDPE pipes for nuclear plant are mainly used on nuclear plant water circulating system, nuclear power plants require large amounts of water for cooling. Two-thirds of the energy produced by a power plant is excess heat that is carried away from the plant in the water (which is not contaminated by radioactivity). The water is then sent into cooling towers to be emitted as steam or is discharged into a body of water, such as a dedicated cooling pond, a lake or river, or into an ocean. Systems to carry this water, plus the pipelines for fire suppression systems, were the first to be converted to HDPE piping.
ZHSU HDPE PIPE WORKSHOP
In order to cooperate with national and international rural drinking water safety project, ZHSU adopted large diameter facility for PE production, our biggest PE pipe diameter reached DN1200mm at present, ZHSU has become one of the manufacturers in china who can produce such large diameter PE pipe.
ZHSU CNAS NATIONAL LABORATORY
ZHSU has CNAS proved national laboratory, 100% imported Borealis or South Korea raw material for HDPE pipes, full sets of inspections will be made by zhsu national laboratory for each order during and after production procedure, meanwhile CNAS inspection report will be provided and traceable.
High quality assurance for green and healthy pipes, we cherish every drop of water as it’s our social responsibility and mission
ZHSU FACTORY
Shanghai Zhongsu Pipe Co.,Ltd established in 2004 with 1.01 billion registration capital, situated in Jinshan district of shanghai china, occupied 70000 square meters, there are 5 workshops at present, they are PPR workshop, HDPE for water & gas workshop, PVC workshop, HDPE double wall corrugated pipe workshop and warehouse workshop.
ZHSU HDPE PRODUCT STOCK
Enough stock for common standard HDPE pipes, fast delivery
PACKING & DELIVERY
Naked packing for hdpe pipes, woven bags packing are available if required
Paper box for HDPE fittings, customized paper boxes are available
Professional container shipment,vessel companies we usually cooperated with are MAERSK、COSCO、EVERGREEN etc.
